Stabilized Soil Mixing Plant (stationary type)

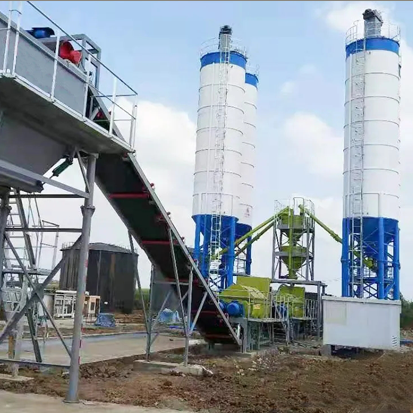

WBZ-600 Stabilized Soil Mixing Plant
- Number：Stabilized Soil Mixing Plant
- Time：2023-06-05 10:21:54
- Description：Stabilized soil batching plant is a quite good choice for high-class highway, railway, municipal construction project, which requires stabilized soil base materials. Equipped with industrial computer control system, it has a strong adaptability to materials.
WBZ-600Ton Per Hour Stabilized Soil Mixing Plant
Brief Description
Stabilized soil mixing plant is widely used to mixing different kinds of materials according to the requirements of customers.
With industrial computer control system, it has a strong adaptability to materials. Besides, soil stabilizing plants are characteristic of high reliability, compact structure, easy operation, reasonable layout. And stabilized soil mixing plant for sale is quite suitable for the high-class highway, railway, municipal construction project, which requires stabilized soil base materials.
With industrial computer control system, it has a strong adaptability to materials. Besides, soil stabilizing plants are characteristic of high reliability, compact structure, easy operation, reasonable layout. And stabilized soil mixing plant for sale is quite suitable for the high-class highway, railway, municipal construction project, which requires stabilized soil base materials.
Parameters
|
Technical indicators
|
WBZ-600
|
|
Productivity
|
600 tons/hour
|
|
Total power
|
140KW
|
|
Voltage
|
AC380/220V
|
|
Frequency
|
50Hz
|
|
Particle size of mixture
|
≤60mm
|
|
Measurement method
|
Electronic dynamic weighing measurement
|
|
Ingredients precision
|
Aggregate: ±1.5%
Soil: ±1.5% Lime: ±1% Cement: ±1% Water: ±1.5% |
|
Stirring form
|
Horizontal double-shaft continuous forced stirring
|
|
Form of control
|
Centralized console control
|
|
Broken arch form
|
mechanical/gas
|
|
Filling height
|
2.3 meters
|
|
Discharge height
|
3 meters
|
|
Vehicle width
|
3.5 meters
|
|
Gross weight
|
about 48 tons
|
|
Floor area
|
43×5(m)
|
Features
1. It can be used in the production of stabilized soil for most raw materials, such as cement stabilized soil, crushed stone stabilized soil, lime stabilized soil, ete.
2: The equipment is suitable for the construction of highways, airports, railways, municipalities, etc., and produces stabilized soil substrates of different specifications;
3: It adopts the double-horizontal shaft forced mixing main machine without lining board, which is driven by the dense blades of the mixing pot, which has high productivity, uniform mixing, stable production process and long service time.
4: Double-motor drive gearbox, stable operation
5: The bearing seat of the mixer is separated from the mixing cylinder, so there is no need to worry about the infiltration of dirt;
6: Its water supply form is better, it can supply water more uniformly and with higher efficiency, and reduce dust pollution.
7: The stabilized soil mixing cquipment uses a large-mouth screw feeder, which reduces the phenomenon that the impeller feeder is easily blocked by moisture in the past, makes the dust metering stable and uniform, and can reduce the waste of materials.
8: Various forms of powder supply are available: manual unpacking of cement or bulk cement or bucket elevator;
9: Adopt computer speed regulation or frequency conversion electronic speed regulation, uniform feeding, accurate matching and simple operation.
2: The equipment is suitable for the construction of highways, airports, railways, municipalities, etc., and produces stabilized soil substrates of different specifications;
3: It adopts the double-horizontal shaft forced mixing main machine without lining board, which is driven by the dense blades of the mixing pot, which has high productivity, uniform mixing, stable production process and long service time.
4: Double-motor drive gearbox, stable operation
5: The bearing seat of the mixer is separated from the mixing cylinder, so there is no need to worry about the infiltration of dirt;
6: Its water supply form is better, it can supply water more uniformly and with higher efficiency, and reduce dust pollution.
7: The stabilized soil mixing cquipment uses a large-mouth screw feeder, which reduces the phenomenon that the impeller feeder is easily blocked by moisture in the past, makes the dust metering stable and uniform, and can reduce the waste of materials.
8: Various forms of powder supply are available: manual unpacking of cement or bulk cement or bucket elevator;
9: Adopt computer speed regulation or frequency conversion electronic speed regulation, uniform feeding, accurate matching and simple operation.
