Stabilized Soil Mixing Plant (stationary type)
WBZ-300 Stabilized Soil Mixing Plant
- Number：WBZ-300 Stabilized Soil Mixing Plant
- Time：2023-06-05 09:37:40

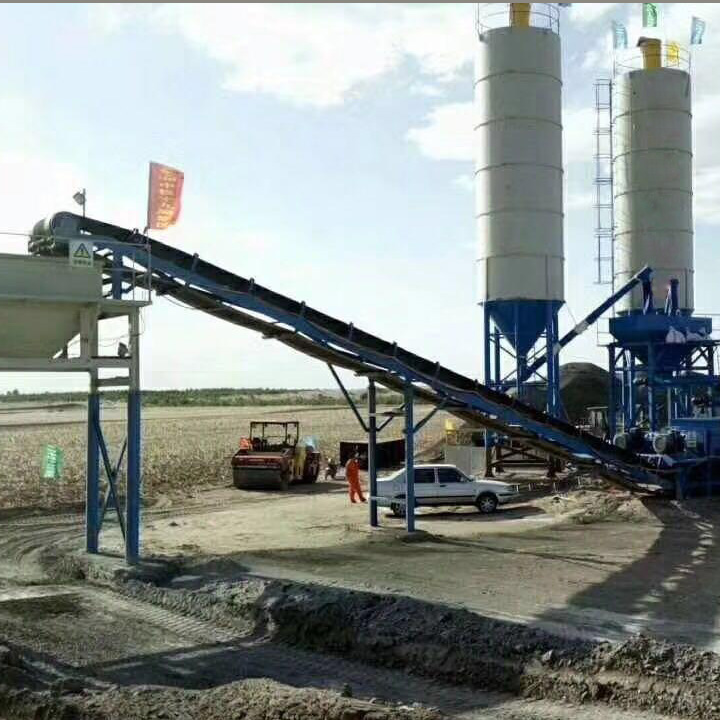

- Description：A stabilized soil mixing plant is a combination of kinds of machines used for mixing stabilized soil, which is used for highway construction, municipal road projects, and fertile airport areas. The plant produces stabilized soil with different gradings in a continuous way.
Product Name: WBZ-300 Stabilized Soil Mixing Plant
Model: WBZ-300
Production capacity: 300 tons per hour
The Features of our WBZ-300 Stabilized Soil Mixing Plant
1. The automatic batching system is composed of aggregate bin, weighing belt conveyor and aggregate belt conveyor.
It has the characteristics of compact structure, reasonable space layout, large hopper capacity, low relative height of
feeding, high reliability, casy operation and casy maintenance.
2.The water output remote control management and control software is composed of a flow meter and a frequency
conversion speed regulator. The water flow can be set and locked by lightly pressing the button on the console, and
the operator does not need to run around in the main control room and mix. Between machines, it has high precision
and quick response.
3. The automatic control system composed of weighing sensor, frequency conversion speed regulator and industrial
control microcomputer has strong anti-interference ability, and can carry out continuous dynamic weighing of various
stone materials in turn, so that the stone material feeding is more uniform and the preparation is more accurate.
4.Good automatic fault identification and alarm function, which improves the automation degree of the entire equipment
and the safcty of operation. The scaled, air-conditioned control room improves the operator's comfort and relieves
operator fatigue.
1. The automatic batching system is composed of aggregate bin, weighing belt conveyor and aggregate belt conveyor.
It has the characteristics of compact structure, reasonable space layout, large hopper capacity, low relative height of
feeding, high reliability, casy operation and casy maintenance.
2.The water output remote control management and control software is composed of a flow meter and a frequency
conversion speed regulator. The water flow can be set and locked by lightly pressing the button on the console, and
the operator does not need to run around in the main control room and mix. Between machines, it has high precision
and quick response.
3. The automatic control system composed of weighing sensor, frequency conversion speed regulator and industrial
control microcomputer has strong anti-interference ability, and can carry out continuous dynamic weighing of various
stone materials in turn, so that the stone material feeding is more uniform and the preparation is more accurate.
4.Good automatic fault identification and alarm function, which improves the automation degree of the entire equipment
and the safcty of operation. The scaled, air-conditioned control room improves the operator's comfort and relieves
operator fatigue.
| Technical indicators | WBZ300 |
| Productivity | 300 tons/hour |
| Total power | 90KW |
| Voltage | AC380/220V |
| Frequency | 50Hz |
| Particle size of mixture | ≤60mm |
| Measurement method | Electronic dynamic weighing measurement |
| Ingredients precision | Aggregate: ±1.5% Soil: ±1.5% Lime: ±1% Cement: ±1% Water: ±1.5% |
| Stirring form | Horizontal double-shaft continuous forced stirring |
| Form of control | Centralized console control |
| Broken arch form | mechanical/gas |
| Filling height | 2.3 meters |
| Discharge height | 3 meters |
| Vehicle width | 3.5 meters |
| Gross weight | about 32 tons |
| Floor area | 43×5(m) |
