Stabilized Soil Mixing Plant (stationary type)

  • WBZ-400 Stabilized Soil Mixing Plant
  • WBZ-300 Stabilized Soil Mixing Plant
  • WBZ-500 Stabilized Soil Mixing Plant
WBZ-400 Stabilized Soil Mixing Plant WBZ-300 Stabilized Soil Mixing Plant WBZ-500 Stabilized Soil Mixing Plant

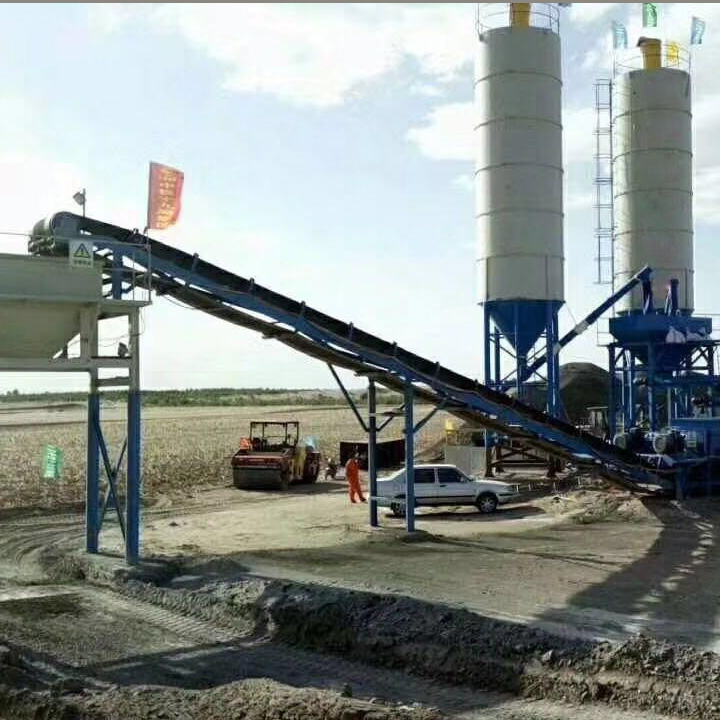

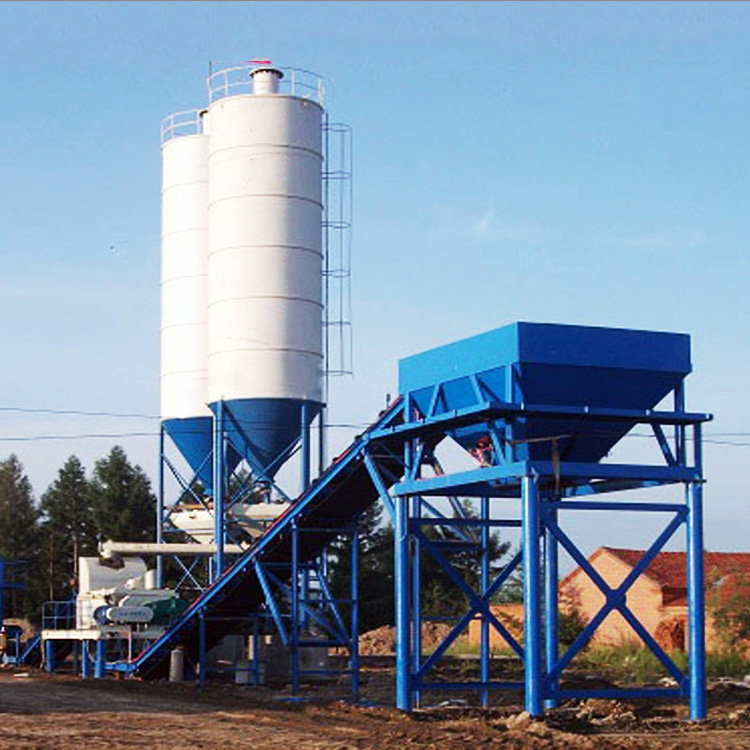

WBZ-400 Stabilized Soil Mixing Plant

  • Number:WBZ-400 Stabilized Soil Mixing Plant
  • Time:2023-06-05 10:15:01
  • Description:Soil Stabilization is the modification of existing soils to enhance their physical properties. In-situ Stabilization increases the shear strength of soils while also controlling the shrink-swell properties, thus improving the load bearing capacity of a sub-grade to support pavements.

Product Name: WBZ-400Stabilized Soil Mixing Plant

Model: WBZ-400

Production capacity: 400 tons per hour

The Features of our WBZ-400 Stabilized Soil Mixing Plant

1. Double-shaft rotary mixer is adopted, and the mixing uniformity is good;

2. The measurement adopts electronic components for weighing, with high mcasurement accuracy and reliable performance;

3. It adopts industrial microcomputer automatic control system, which can store more than 999 groups of formulas, with manual and
automatic opcration, humanized screen, and good system stability;

4. Modular combination structure is adopted, which is convenient for assembly and transportation.

5. The seasoning adopts high-precision belt scale and electronic screw scale, and the measurement is accurate.



Technical indicators WBZ400
Productivity 400 tons/hour
Total power 100KW
Voltage AC380/220V
Frequency 50Hz
Particle size of mixture <60mm
Measurement method Electronic dynamic weighing measurement
Ingredients precision Aggregate: ±1.5%                 Soil: ±1.5%
Lime: ±1%
Cement: ±1%
Water: ±1.5%
Stirring form Horizontal double-shaft continuous forced stirring
Form of control Centralized console control
Broken arch form mechanical/gas
Filling height 2.3 meters
Discharge height 3 meters
Vehicle width 3.5 meters
Gross weight about 36 tons
Floor area 43×5(m)
