Stabilized Soil Mixing Plant (integrate Solution)

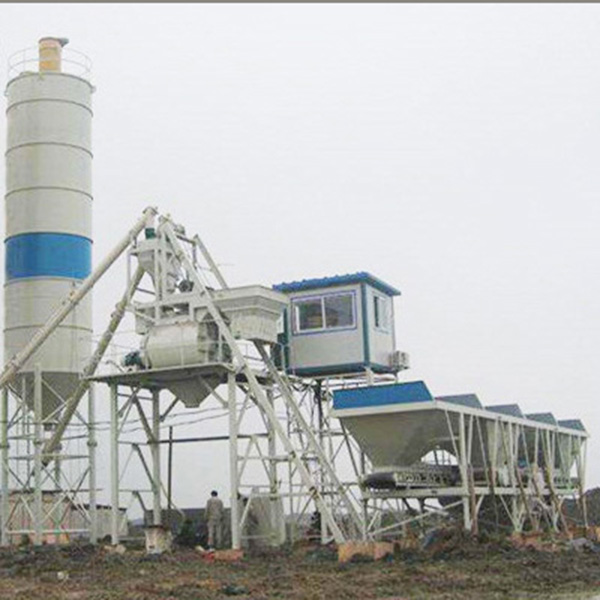

YWBZ-400 Integrated Foundation Stabilized Soil Mixing Plant
- Number：YWBZ-400 Integrated Foundation Stabilized Soil Mixing Plant
- Time：2023-06-05 10:51:56
- Description：Soil stabilization mixing plant adopts twin-shaft compulsory mixer and the paddle line velocity method. So that the materials in the boiling state can advance rapidly, which leads to high production. Meanwhile, the mixing production process is continuous and stable and there is no need replacing lining plate, which ensures the long service time and low maintenance cost of stabilized soil mixing equipment.
Product Name: Integrated foundation stabilized soil mixing plant
Model: YWBZ-400
Production capacity: 400 tons per hour
The Features of our integrated foundation stabilized soil mixing plant
1. Conveyor system: wear-resistant and durable, casy maintenance.
2. Powder metering system: scientific setting,accurate metering.
3.Liquid metering system: intelligent adjustment, controllable quality.
4.Intelligent control system: efficient management, clear data.
5.Cloud platform service: remote assistance, no worries about failures.
6.Demand customization: customized services vary according to needs.
| Product name | Production capacity |
| YWBZ 200 Stabilized soil mixing plant | 200 Tons per hour |
| YWBZ 300 Stabilized soil mixing plant | 300 Tons per hour |
| YWBZ 400 Stabilized soil mixing plant | 400 Tons per hour |
| YWBZ 500 Stabilized soil mixing plant | 500 Tons per hour |
| Rated productivity | ≥400t/h |
| Allowable aggregate particle size | ≤60 mm |
| Measurement method | volumetric metering |
| Aggregate batching precision | <±2% |
| Cement batching precision | <±1-2% |
| Aggregate bin capacity | 4×6 m3 |
| Powder bin capacity | 1×4 m3 |
| Finished product silo capacity | 6 m3 |
| Discharge height | 2.7m |
| Stirring shaft speed | 93 r/min |
| Total power | 110kW |
