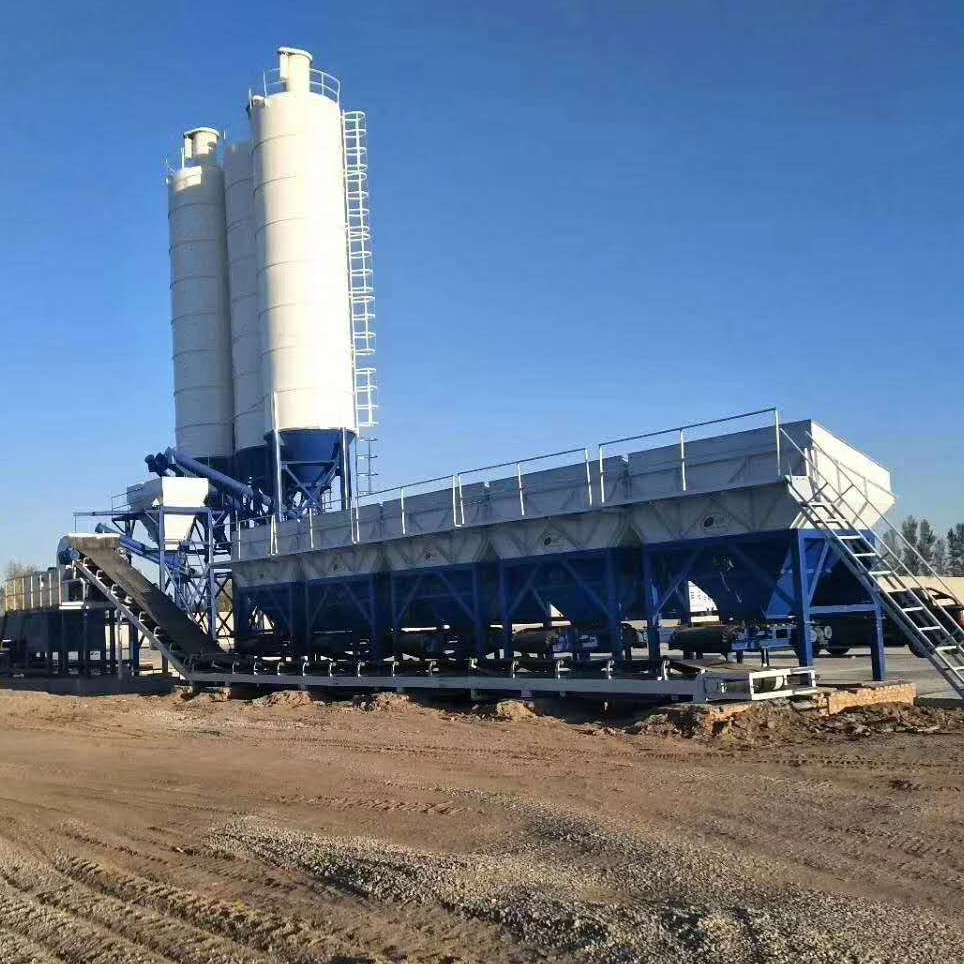

Stabilized Soil Mixing Plant (integrate Solution)

YWBZ-300 Integrated Foundation Stabilized Soil Mixing Plant

YWBZ-200 Integrated Foundation Stabilized Soil Mixing Plant

YWBZ-400 Integrated Foundation Stabilized Soil Mixing Plant

YWBZ-300 Integrated Foundation Stabilized Soil Mixing Plant

Number：Stabilized Soil Mixing Plant
Time：2023-06-05 10:41:47
Description：There are two options for operation, manual operation and automatic operation.
It is characteristic of module combination, convenient transportation, simple installment and easy transition.

Online Service Ph:+86-18625566107

Product Name: Integrated foundation stabilized soil mixing plant

Model:YWBZ-300

Production capacity: 300 tons per hour

The Features of our integrated foundation stabilized soil mixing plant

1. The finished products produced by the stabilized soil mixing plant are mainly used in the construction of traffic engineering projects such as roads, railways, and airports.

2. The price of the finished product of the stabilized soil mixing plant is lower, and the production volume is larger.

3. The stabilized soil mixing plant uses a twin-shaft continuous mixing main engine without liners.

4. One or two cement tanks are needed in the stabilized soil mixing plant equipment.

5. The metering methed of the stabilized soil mixing plant is usually dynamic metering. The stabilized soil mixing plant has a simple structure and is easy to maintain.

Product name	Production capacity
YWBZ 200 Stabilized soil mixing plant	200 Tons per hour
YWBZ 300 Stabilized soil mixing plant	300 Tons per hour
YWBZ 400 Stabilized soil mixing plant	400 Tons per hour
YWBZ 500 Stabilized soil mixing plant	500 Tons per hour

Rated productivity	≥300t/h
Allowable aggregate particle size	≤60 mm
Measurement method	volumetric metering
Aggregate batching precision	<±2%
Cement batching precision	<±2%
Aggregate bin capacity	3×6 m3
Powder bin capacity	1×4 m3
Finished product silo capacity	6 m3
Discharge height	2.7m
Stirring shaft speed	93 r/min
Total power	98 kW
