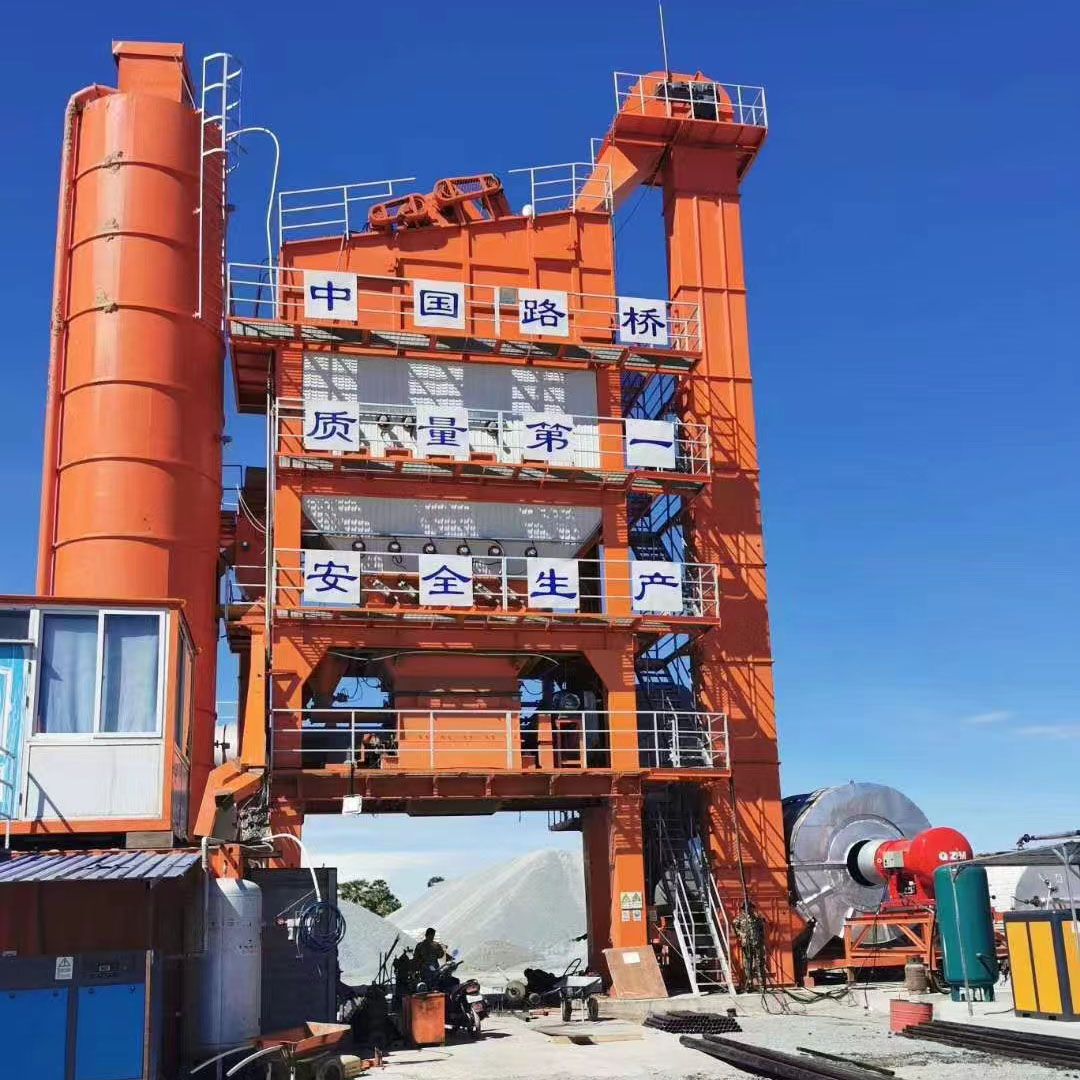

160 Tons Asphalt Mixing Plant
- Number：160 Tons Asphalt Mixing Plant
- Time：2023-06-05 09:33:01
- Description：KMR mixing plant offers a complete line of stationary continuous mix asphalt plants, batch process asphalt plants, and related components.
With capacities from 80 to 160 t/h.
As well as stabilized soil mixing plant and dry mortar mixing plant.

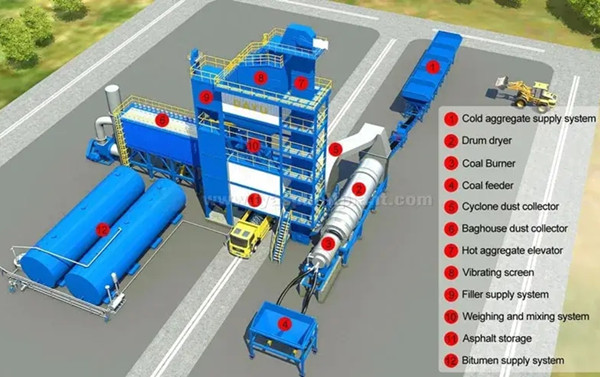

Brief Description
1.Cold aggregate feeding system;
2.Drum dryer
3.Coal bumer
4.Coal feeder
5.Cyclone dust collecter
6.Baghouse dust collector
7.Hot aggregate elevator
8.Vibrating screen
9.Filler supply system
10.Weighing and mixing system
11.Asphalt storage
12.Bitumen supply system
Asphalt batch mix plant is road surface material manufacturing equipment that features interval pauses in the course of production due to its mixer. More accurate weighment, and more precise dosing of cold aggregate, bitumen, filler, and other additives ensure the homogeneous final asphalt mixture.is suitable for pavement on highways, municipal roads, parking lots, airport expressways, etc.
While there are a variety of classification standards concerning asphalt plants, some representative types, like batch mix, drum mix, stationary, and mobile, are widely comprehended and accepted.
As a professional manufacturer and exporter, the KMR mixing plant is good at producing hot mix plants for clients according to their actual demands.
While there are a variety of classification standards concerning asphalt plants, some representative types, like batch mix, drum mix, stationary, and mobile, are widely comprehended and accepted.
As a professional manufacturer and exporter, the KMR mixing plant is good at producing hot mix plants for clients according to their actual demands.
Parameters
|
Production capacity
|
160(t/h)
|
|
Capacity per pot
|
2000(kg)
|
|
Total installed capacity
|
490(kw)
|
|
Sand and gravel (accumulation of four kinds of materials) measurement accuracy
|
±0.5%
|
|
Measuring accuracy of powder (accumulation of two materials)
|
±0.5%
|
|
Asphalt metering accuracy
|
±0.3%
|
|
Temperature control accuracy
|
≤± 5 (°C)
|
|
Dust-proof efficiency
|
≤100(mg/Nm3 )
|
|
Batcher length × width
|
2.45 × 3.6 (m)
|
|
Batching bucket capacity
|
11.3 (m3)
|
|
Collecting belt machine width
|
650 (mm)
|
|
Collecting belt conveyor power
|
7.5 (kw)
|
|
Drying cylinder diameter × length
|
2.2 (m)×8.0 (m)
|
|
Drying cylinder power
|
44 (kw)
|
|
Vibrating screen length × width
|
5(m)×1.8(m)
|
|
Vibrating screen power
|
11(kw)×2
|
|
Weighing bucket stone capacity
|
2000(kg)
|
|
Weighing hopper powder capacity
|
350(kg)
|
|
Asphalt capacity of weighing bucket
|
300(kg)
|
|
Stirring pot capacity
|
2000(kg)
|
|
Stirring pot power
|
75(kw)
|
Components
1.Cold aggregate feeding system;
2.Drum dryer
3.Coal bumer
4.Coal feeder
5.Cyclone dust collecter
6.Baghouse dust collector
7.Hot aggregate elevator
8.Vibrating screen
9.Filler supply system
10.Weighing and mixing system
11.Asphalt storage
12.Bitumen supply system
Features
1: The agitator is made of high-strength and wear-resistant materials, which improves the service life;
2: The first-level cyclone dust removal system plus the second-level water-type dust collector system
and the negative pressure dust-proof design of the building are economical and practical, reducing investment costs for customers;
3: The linear vibrating screen driven by imported vibrating electric drive improves the screening efficiency and reduces the equipment failure rate;
4: The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and improves the stability of operation;
5: The optimized structure of the drying drum lifing plate makes the drying system more efficient and stable;
6: The whole machine adopts modular design, which makes handling and installation faster and more convenient;
7: Fully automatic computer/manual control system, with fault self-diagnosis feedback program, making the operation simple and safe.
2: The first-level cyclone dust removal system plus the second-level water-type dust collector system
and the negative pressure dust-proof design of the building are economical and practical, reducing investment costs for customers;
3: The linear vibrating screen driven by imported vibrating electric drive improves the screening efficiency and reduces the equipment failure rate;
4: The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and improves the stability of operation;
5: The optimized structure of the drying drum lifing plate makes the drying system more efficient and stable;
6: The whole machine adopts modular design, which makes handling and installation faster and more convenient;
7: Fully automatic computer/manual control system, with fault self-diagnosis feedback program, making the operation simple and safe.
